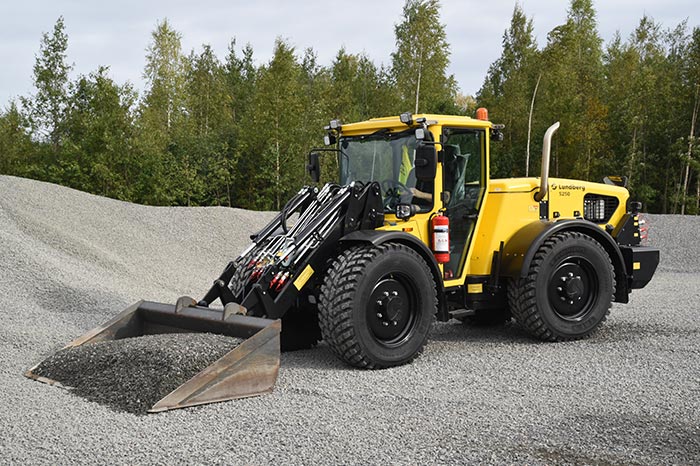

Lundberg 5250

A machine bigger than its size. It has all of the properties of the 6255, but it is lower and narrower. This makes it the perfect choice when you need a little more strength and power, but are working with limited spaces and heights.

Lundberg 5250


Sweeping snow and sweep-salting

Lawn mowing and bush cutting

Cleaning and collecting

Snow ploughing and sand spreading


Comfortable and
Easy to operate

All stages of the work can be accomplished using one single machine. The changing of the tools is done quickly, and the machine travels rapidly and safely from one work site to the next. A very quiet cabin gives it extra operating comfort.

The range of products comprises five machine models and a comprehensive range of accessories.


Multipurpose Lundberg – fast, agile and powerful

Machines that are suitable for the maintenance of properties and environmental services throughout the year. These machines, which can withstand heavy loading, are very reliable and have well-proven components.


Technical information: LUNDBERG 5255

  • Engine

    •   Deutz TCD 3,6 L4 f, Stage 5
      Output (DIN) 80 kW (107 hp)/2400 rpm
      Torque 420 Nm/1600 rpm
  • High speed transmission

    • Hydrostatic, variable displacement pump and motor.
      Mechanical transport gear with electric control.
      Gears forward/backward 4/4
      Max. tractive force 53,1 kN
      Speed 0 - 50 km/h
  • Hydraulic system

    • Load-sensing operating hydraulics with electric pilot control.
      Pump with variable displacement, double-acting hydraulic
      motor functions with individually adjustable flow.
      Maximum flow of hydraulic oil 200 l/min (2300 rpm)
      Operating pressure 22 Mpa
  • Frame

    • Articulated steering and oscillating frame.
      Max. steering angle ± 43°
      Max. oscillation angle  ± 17°
  • Wheels

    • As standard 420/65R24
      As option 460/65R24
  • Brakes

    • Hydraulic power-assisted brakes in oil bath on both front and
      rear axles. Electro-hydraulic parking brake on the rear axle.

  • Electric system

    • Voltage 12 V
      Alternator 200 A
  • Measurements and weight

    • Height 2290 mm
      Width (between the outer flanks of the tyres)  1750 mm
      Turning radius (inside/outside wheels) 2195 mm/4346 mm
      Capacity of the fuel tank 100 l
      Capacity of the AdBlue tank 10 l
      Weight without work attachments 4300 - 5200 kg
  • Loader

    • Lifting height 3230 mm

Download brochure: Lundberg 55-series
