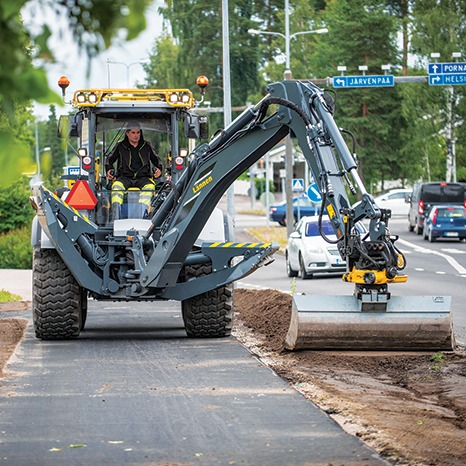

Lännen 8600K infrastructure

Are you on the market for an agile and truly multipurpose machine for a variety of projects? Lännen 8600K has powerful, precisely operating working hydraulics with a broad range of adjustments for the various needs of each task, work attachment and operator.

The most agile machine in its class thanks to the 42° turning angle of the articulation joint and ± 400 mm frame oscillation. Excellent all-round visibility increases safety when working in confined spaces and in dense areas.

Lännen 8600K infrastructure

Main features

Lannen_mobility_stability_700x466

Agile and stabile

Articulated steering with 42° steering angle and the frame oscillation of ± 400 mm provide high levels of agility, maneuverability and off-road capability.

High ground clearance, differential locks on the axles, hydrostatic transmission, as well as automatic frame oscillation control system AOC guarantee excellent and precisely controlled mobility and stability even in the roughest terrain.

Lannen_comfort_ergonomics_700x466

Comfortable and easy to operate

The operator-friendly cabin is comfortable, spacious and low-noise. A high capacity heater and climate control ensures a pleasant working temperature throughout the whole year. Excellent all-round visibility and ergonomics enable easy and safe control of the machine:

  • a height-adjustable steering column with two-points articulation
  • an armrest mounted control panel
  • easy-to-adjust, sturdy armrests
  • unobstructed swivel of the seat.
Lannen_powerful_economical_700x466

Powerful and economical

The most powerful and economical machine on the market in its weight class. The low-emission Agco Power diesel engines comply with Stage IV emission requirements.

The wide range of maximum torque makes it possible to work effectively and economically even at low revolutions. This saves on fuel and reduces the noise level.

Lannen_8600_backhoe_loader_for_effective_material_handling

Effective and versatile hydraulics

Powerful, high-lifting loader for effective material handling and loading. The long-reach backhoe has a wide working range, high digging and lifting forces, and excellent slewing torque.

A load sensing, effective and fully adjustable operation hydraulics enable precise, safe and economical use of wide range of robust and powerful work attachments.

Lannen_built_to_last_2_work_site_700x700

DESIGNED TO BE VERSATILE
— BUILT TO LAST

We design machines for your ease-of-use and with effectiveness in mind. One multipurpose Lännen is capable of tasks which traditionally have required several machine types to accomplish.

Lännen's solid, heavy-duty structure, powerful and versatile hydraulic system make it possible to use a wide range of robust and powerful work attachments on both the loader and backhoe. In addition, the backhoe unit is detachable and it can be replaced with a rear tool carrier equipment and several work tools.

SMART PRODUCTIVITY

Settings for tasks, attachments or operators can be saved via display for quick recall. Multitasking with work tools attached to both the loader and backhoe, or carrying out successive tasks with a single set of work tools simply by changing the driving direction multiplies the versatility and productivity of Lännen to a completely unbeatable level.

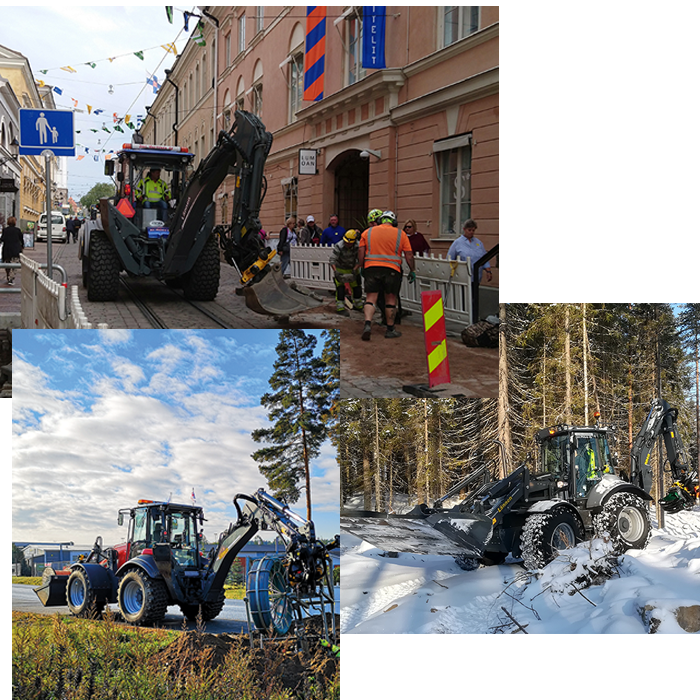

700x466_Lännen_mobility_

KEEPING YOU ON TRACK TO EFFICIENCY

The multipurpose Lännen provides smart productivity through first-class versatility and mobility.

With Lännen, you can cover a wide variety of applications throughout the year. It is smooth and safe to drive both on the roughest terrain and on the highway, as well as in densely populated areas and confined spaces.

The excellent overall economy of Lännen is a part of our high contribution to a sustainable development. With multipurpose Lännen, you can achieve more with less.

700x466_Lännen_mobility_

Technical information: Lännen 8600K

  • Engine

    • 4-cylinder, turbocharged and intercooled diesel engine, Stage IV Agco Power 44 AWF

      Displacement 4,4 l
      Output 106 (145) kW (hp) / 1900 rpm
      Torque (max.) 580 Nm / 1500 rpm
      Torque (/ 1000 rpm) 575 Nm
      Capacity of the fuel tank 150 l
      Capacity of the AdBlue tank 40 l
  • Electric appliances

    • Alternator with a multi-groove flat belt and automatic tightening 24V / 100 Ah
      Starter 4,5 kW
      Batteries (under the cabin, easy to maintain) 2 x 170 Ah
      Electric engine heater 1100 W
  • Axles

    • ZF axles, automatic friction locks in the front and rear axles. A 100 % gear lock, which can be switched on even while the drive is on, is available as an option.
      Frame oscillation ± 400 mm
      Automatic Oscillation Control System AOC available as an option
  • Transmission and gearbox

    •  Drive controls both in the front and rear as standard.

      Hydrostatic transmission, 4-wheel drive Range gearbox, electric control
      Drive speed forward/reverse
      1. gear 0…14 km/h
      2. gear 0…46 km/h
  • Wheels

    • Front and rear tyres 18.4B30 Nokia TRI/TL
      Rim DW16-30, reinforced by flanging, valve guards
  • Brakes

    • Oil pressure operated brakes in oil bath on the front and rear
      Parking brake Disc brake on the real axle, electric control
  • Steering

    • Hydrostatic LS Orbitrol steering
      Steering angle of the articulated joint ± 42°
      Turning radius from the centre of the tyre 5,25 m
      Steering is also possible via the left control lever
  • Hydraulics

    • Danfoss valves, verstile and precise control systems
      Variable displacement axial piston pump, max. flow 210 l/min
      Electric output power control available as an option
      Max operating pressure (normal/turbo hydraulics) 225 bar / 245 bar (turbo hydraulics as an option)
      Filling capacity of the hydraulic system 220 l
  • Cabin

    • ROPS and FOPS tested
      Noise level LpA / LWA   67,5 dBA / 101,5 dBA


      The working environment of the operator is spacious and low-noise with excellent all-round visibility. The ergonomic, operator-friendly cabin is comfortable, and it enables the operator to control the machine easily and safely. Its high capacity heater and climate control ensures a pleasant working temperature throughout the whole year.

      Steering column, with two articulated joints and height adjustment, provides a pleasant driving position, and can, as required, be turned out of the way to the front. The seat swivels freely, and its sturdy armrests are easy to adjust for operators of different sizes and varying operating habits.

      The control panel, which is located beside the armrest, includes the switches for the most important functions of the machine. The cabin can be hydraulically tipped in two stages with a manually operated pump for easy service access.

  • Front loader

    • Mechanical self-leveling, position indicator for the bucket.
      Operating pressure (normal/turbo hydraulics)  225 bar / 245 bar (turbo hydraulics as an option)
      Lifting force at the lowest position (normal/turbo hydraulics) 6400 kp / 7000 kp (turbo hydraulics as an option)
      Lifting force at the highest position (normal/turbo hydraulics) 4200 kp / 4600 kp (turbo hydraulics as an option)
      Loading height (bottom of the level bucket) 3470 mm
      Recommended bucket volume (depending on the density of the material being loaded) SAE 1700 l
  • Backhoe unit

    • Knuckle boom, straight backhoe available as an option
      Operating pressure (normal/turbo hydraulics)  225 bar / 245 bar (turbo hydraulics as an option)
      Digging reach 6410 mm
      Digging depth 4500 mm
      Loading height (bottom of the level bucket) 3860 mm
      Swing angle of the backhoe 181 + 54°
      Lifting force at max. reach (normal/turbo hydraulics) 1600 kp / 1750 kp (turbo hydraulics as an option)
      Slewing torque 4320 kpm
      Recommended bucket volume SAE 410 l
  • Main dimensions

    • Lenght/width 9230 mm / 2487 mm
      Cabin height/backhoe height 3150 mm / 4290 mm
      Ground clearance 460 mm
      Weight (without buckets and depending on the configuration) ca. 11 800 kg
